Chef robots pick and place multiple ingredients into trays. Auger fillers meter a single dry ingredient by volume. Here's how the two compare.

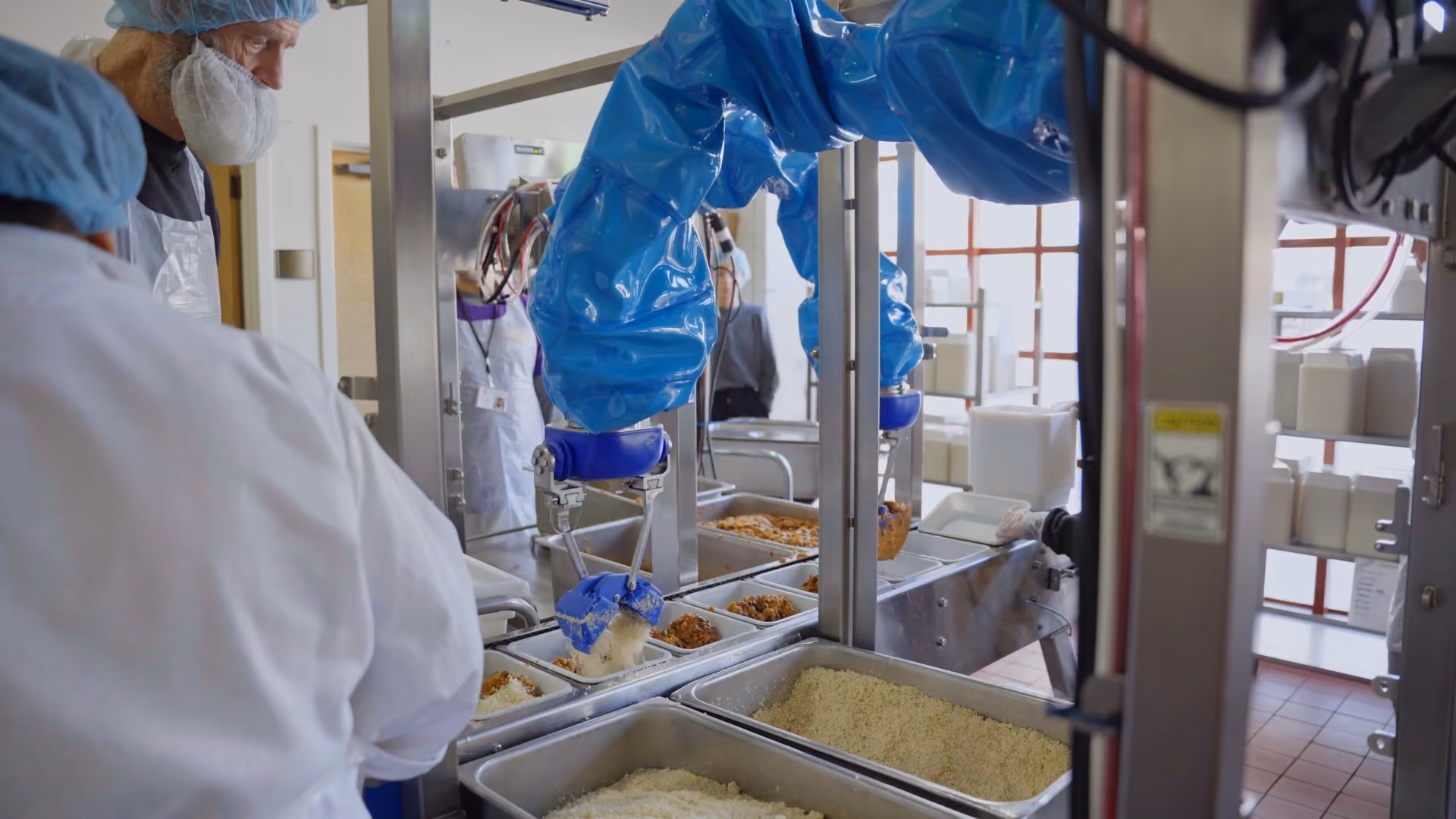

Auger fillers (also called screw fillers, volumetric auger fillers, auger dispensers, or dry powder fillers) are excellent at metering one dry or granular ingredient into a container at high speed. But they fall short in high-mix meal assembly for two reasons. First, they are built for one ingredient at one fixed station; a tray with several ingredients needs several fillers plus line workers to place all the ingredients. Second, even for ingredients they are calibrated for, bulk density varies between batches, and a fixed screw rotation count cannot correct for that drift. Chef robots pick and place ingredients using AI-enabled computer vision, portion by weight instead of volume, and handle multiple SKUs with quick changeovers, and automate meal assembly on a single production line.
Chef robots and auger fillers are both food portioning equipment, but they solve different problems: Chef robots assemble a complete meal in high-mix operations, while auger fillers meter a single dry ingredient. That difference determines which one fits your production line.
| Criteria | Chef robot | Auger filler |
|---|---|---|
| Overview | Picks and places multiple ingredients into tray compartments | Meters one dry or granular ingredient through a rotating screw into a fixed container position |
| Ingredient flexibility | Handles hundreds of ingredients on the same robot | Handles one ingredient per filler |
| Ingredient state | Handles wet, dry, sticky, and mixed ingredients | Limited to dry, free-flowing powders and granules |
| Portioning accuracy | Portions by weight with automatic correction for each pick | Portions by volume using a fixed rotation count; bulk density and particle size changes cause weight drift |
| Changeover time | Changeovers take minutes by swapping the utensil and pan and selecting a new recipe | Changeovers take hours; clearing the hopper and auger tube and recalibrating for the new ingredient's density |
| Dust and cross-contact | No dust and no airborne particles. Only the pan and utensil touch the ingredient. | Fine powders can become airborne between SKUs, extending allergen cleaning; food touches the food-grade hopper, screw, shaft, and delivery tube |
| Ideal use case | High-mix meal assembly with frequent SKU changes | High-volume runs with one consistent dry ingredient |

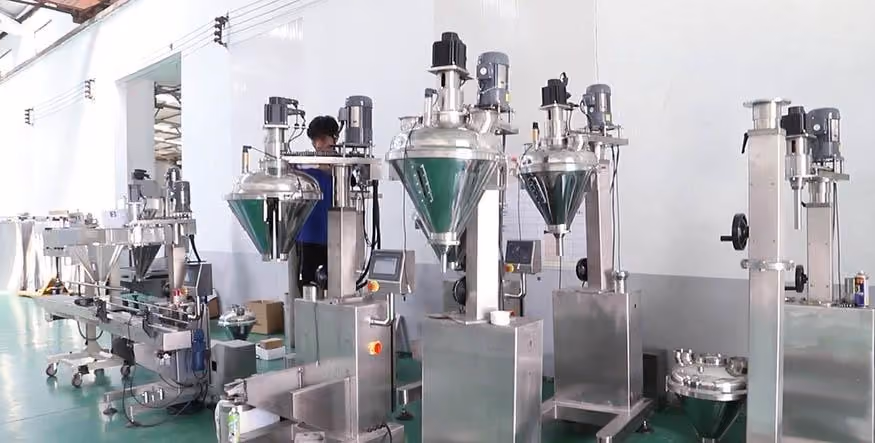

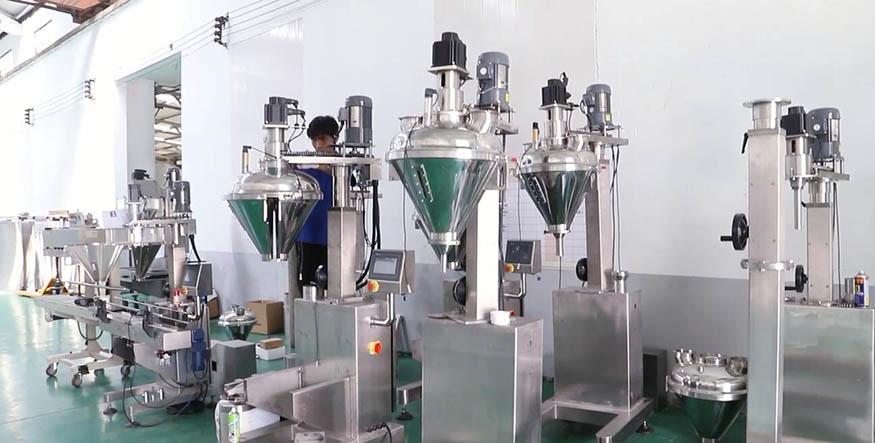

An auger filler uses a rotating screw to portion dry and granular ingredients. Each fill cycle follows the same steps: (1) The hopper holds bulk ingredients above a vertical tube. (2) The screw rotates a set number of times, moving a fixed volume of ingredient down the tube. (3) The ingredient exits through a nozzle into the container below. Each auger filler is calibrated for one ingredient's particle size and bulk density.
Chef customers often run all three side by side: an auger filler meters one dry ingredient it's calibrated for. Chef robots pick-and-place everything else, and line workers step in for the ingredients neither can help automate. Chef automates the meal assembly steps auger fillers are unable to; Chef does not replace every machine on the line.
Manufacturers who move to Chef robots for food manufacturing automation see:
Only to a point. Auger fillers portion by a fixed screw rotation count, so changes in particle size, moisture, or bulk density cause weight variation. Larger screw diameters, agitators, and inline checkweighers can help feed the hopper evenly, but consistency is still a problem for ingredients that don't stay free-flowing and uniform.
Commercial auger filler pricing depends on screw size, automation level, and integration, and vendors quote each project individually. Semi-automatic units typically start under $10,000. Fully automatic inline or rotary multi-spindle systems can cost more than $100,000. Auger fillers are purchased as capital equipment and are paid upfront.
Chef's meal assembly and food portioning robots eliminate upfront costs. Through a robotics-as-a-service (RaaS) model, manufacturers pay a single flat annual fee that covers the robots, software, and support, priced below the labor they replace.
An auger filler is built around one ingredient's particle size, bulk density, and one fill position. Every additional dry ingredient on the tray means another auger filler, another calibration, and another teardown cleaning at changeover.
Most manufacturers add line workers to place what auger fillers are unable to. The alternative is a pick-and-place robot like Chef's meal assembly robots, which pick and place multiple ingredients into specific tray compartments and handle multiple SKUs with quick changeovers.
